M5 Wearable Recorder

M5 Wearable ECG Recorder

The M5 Wearable ECG Recorder is a lightweight body-worn ECG sensor designed for collecting cardiac data in the patients’ natural everyday environment. The small form factor provides mobility and convenience to enhance patient compliance. The M5 delivers highly flexible data collection modes including a single channel patch electrode and lightweight patient cable options of 2, 3, 4, and 5 lead configurations. Continuous ambulatory ECG data can be recorded and stored for up to 21 days.

Our New Wearable Recorder for Ambulatory Data Collection

Designed for simple patient application and usage
Only 2.2 in x 1.3 in x .55 in and 26 grams in weight
Water-resistant and suitable for showering
Rechargeable lithium battery
Up to 14 days continuous recording on a single battery charge
Secure internal memory to store up to 21 days of 3-channel ECG data

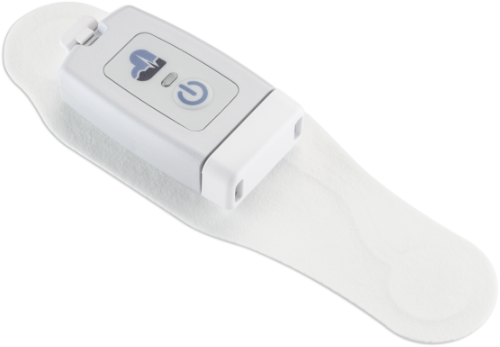

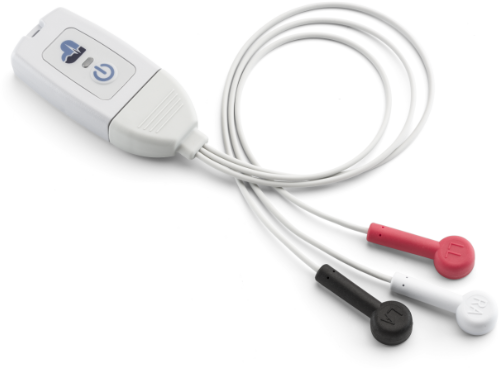

Multiple lead configurations supported via patch electrode or lightweight patient cable (2,3, 4 or 5 lead options)
ECG sampling rate options of 200, 250, or 500 SPS
Ultra-high A/D resolution of 0.5 microvolts
Real-time ECG lead and signal quality confirmation at patient set-up via BluetoothTM (BT) link to M12A Enterprise Software Platform
3 axis-accelerometry provides position & motion reporting through the M12A Enterprise Software Platform
